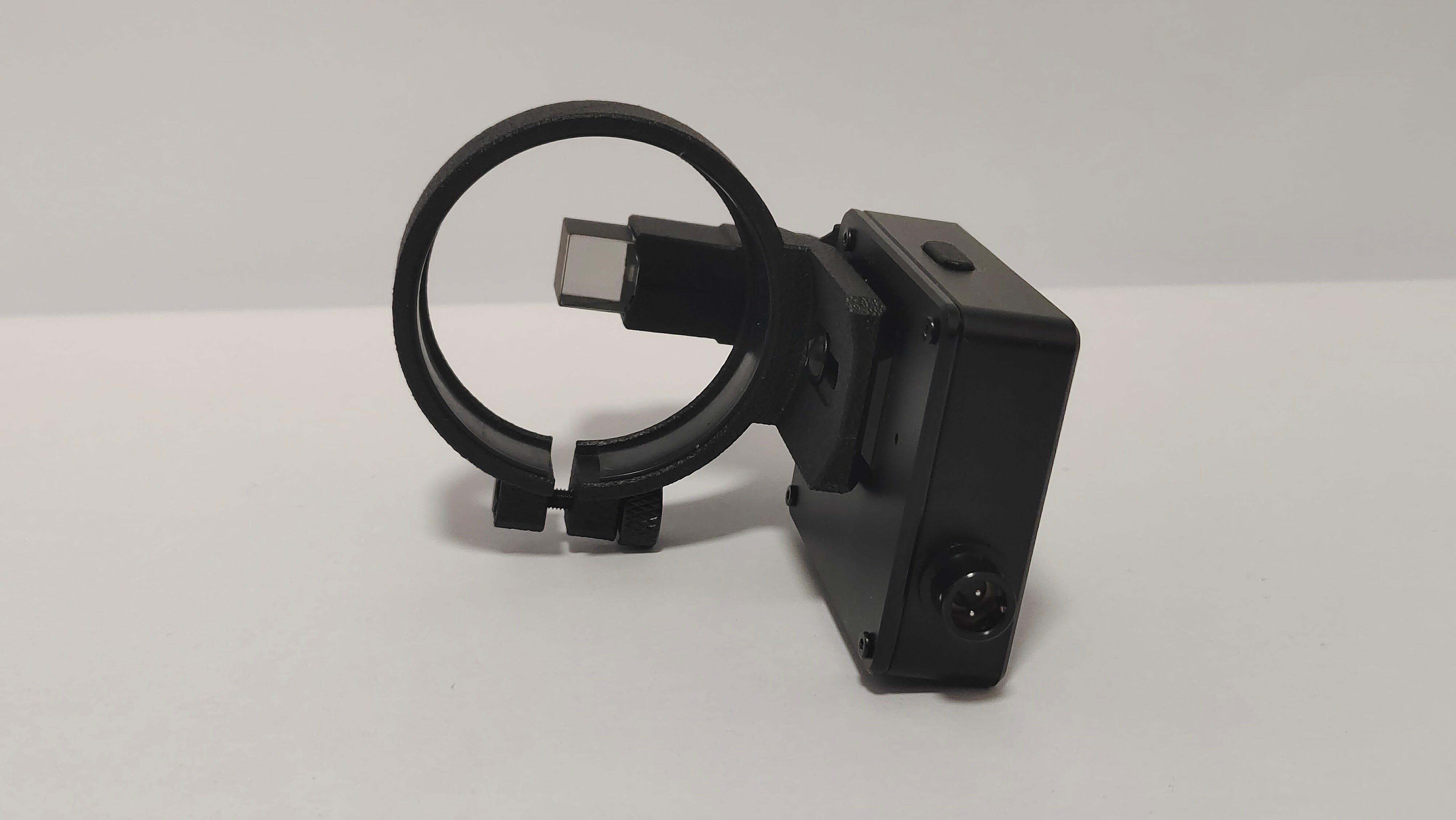

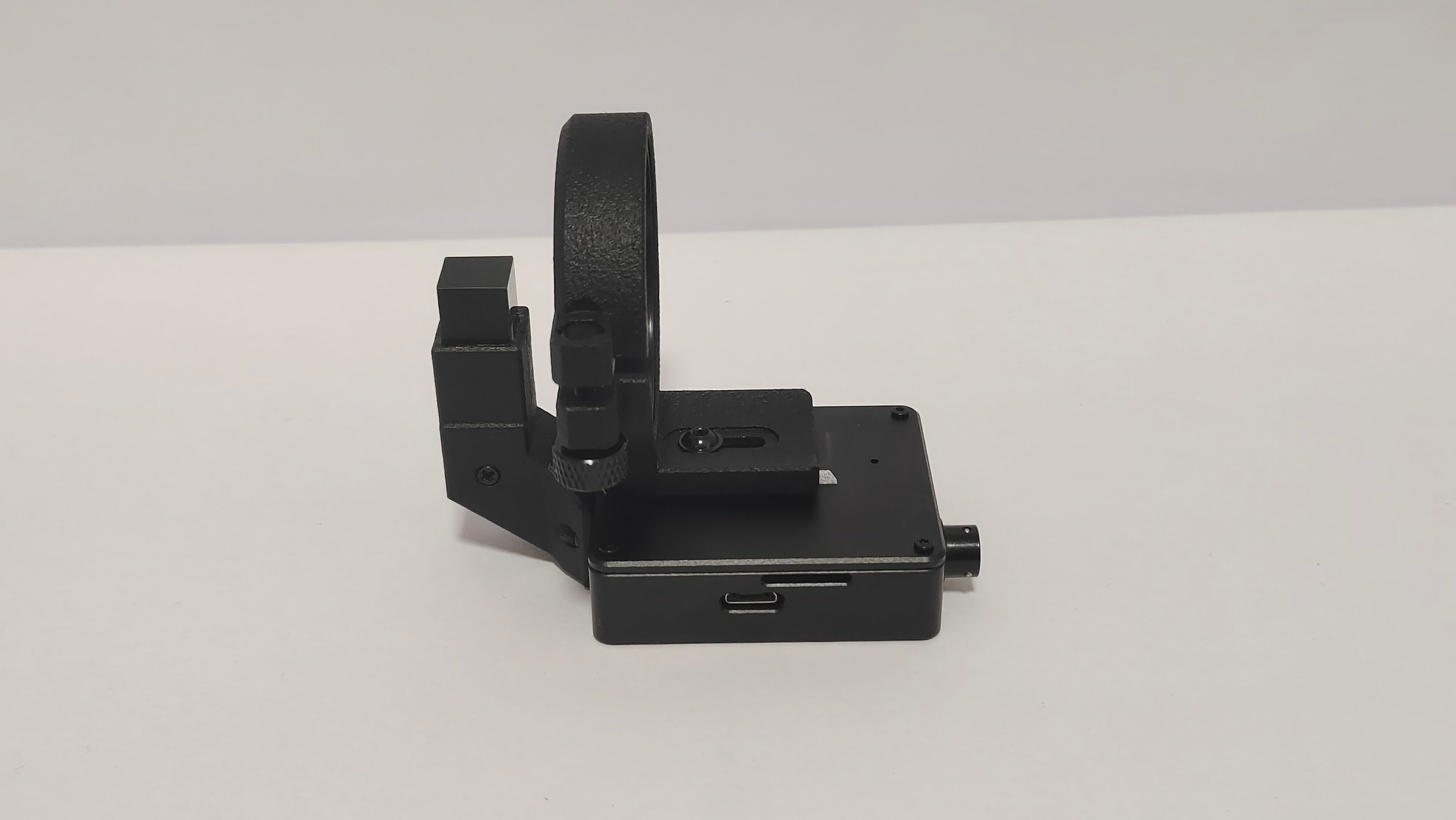

Mutsumi NVGREC
The Mutsumi NVG Recorder is a first person 4K camera for your Night vision goggles.

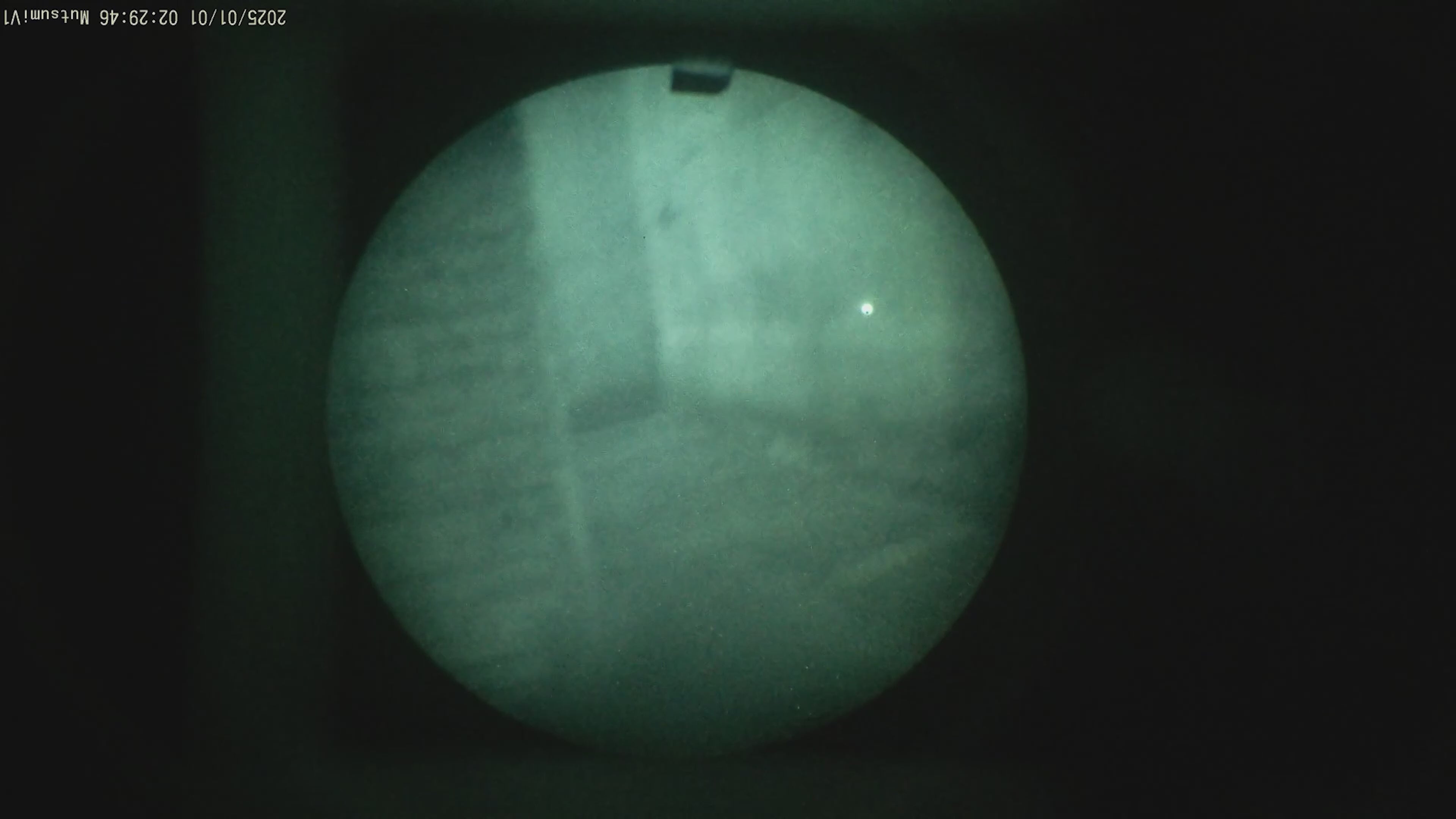

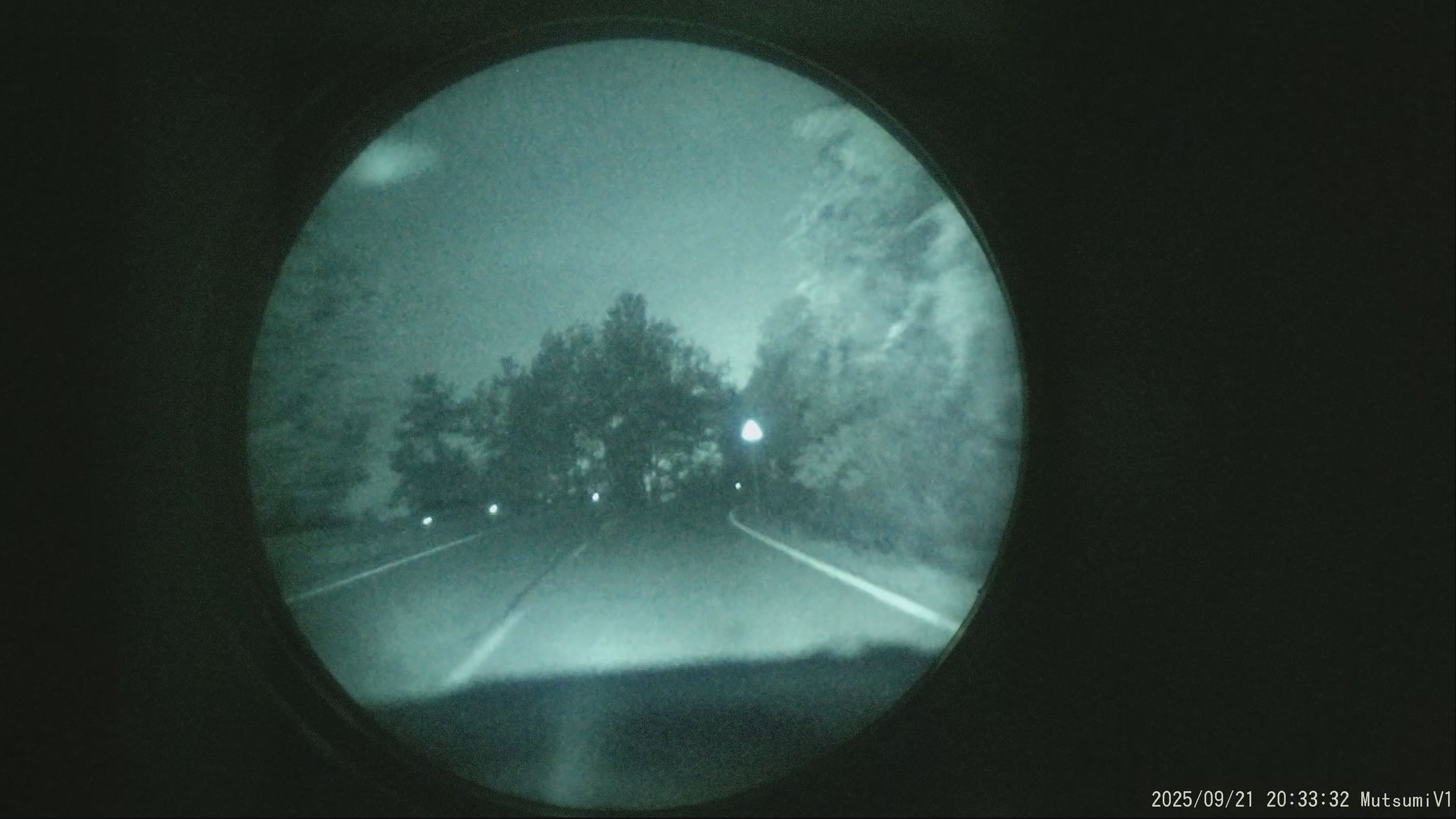

It records what you see through your night vision.
4K, 30 fps recording.
Lightweight (68g / 2.4oz).
Equipped with a built-in microphone and a recording indicator light.
Start recording with a single button press.

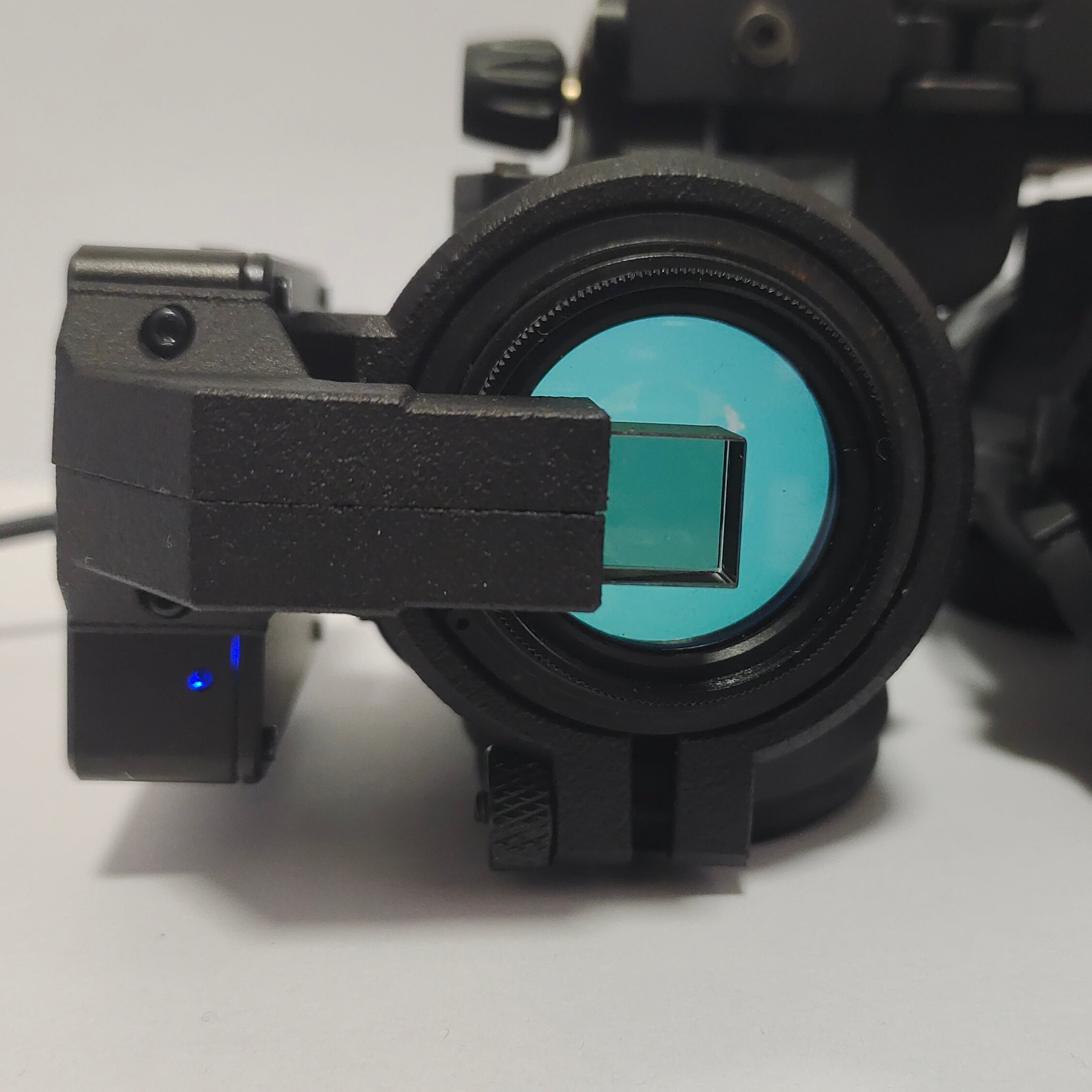

Beam splitter prism

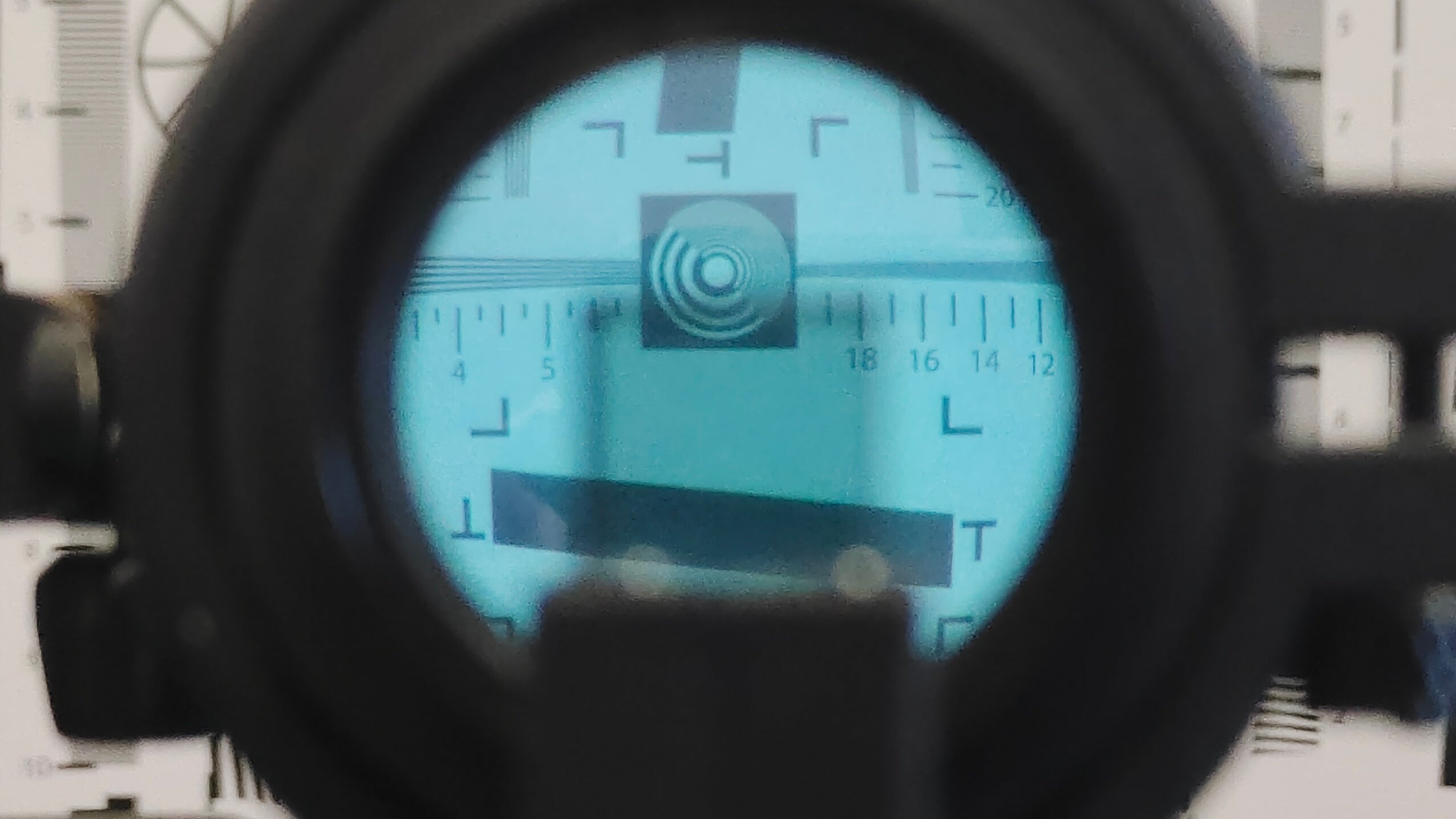

The Mutsumi NVG Recorder uses a beam splitter prism system, which means it won't block your view.
This design solves the problem of view obstruction that traditional NVG recorders have.

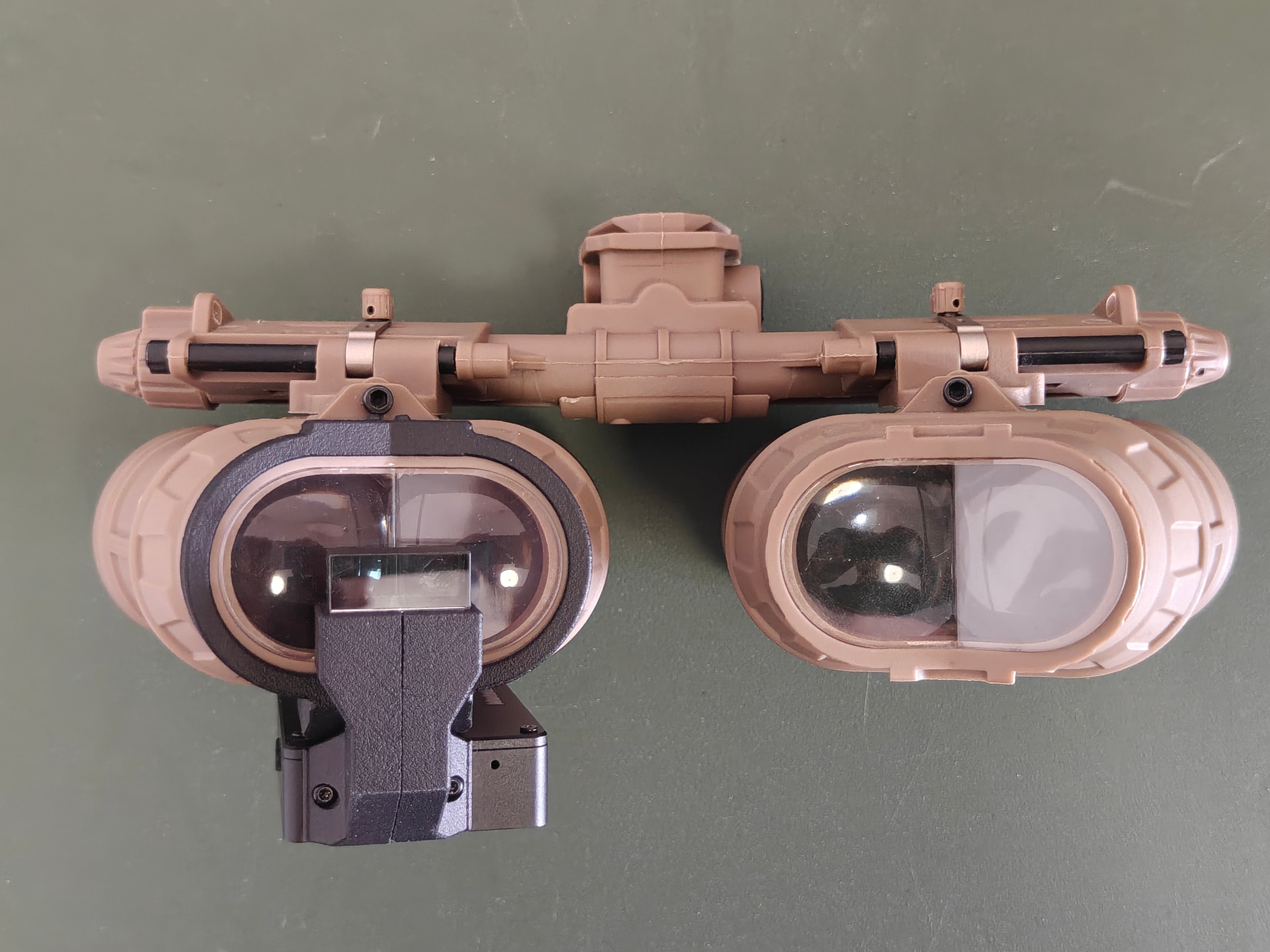

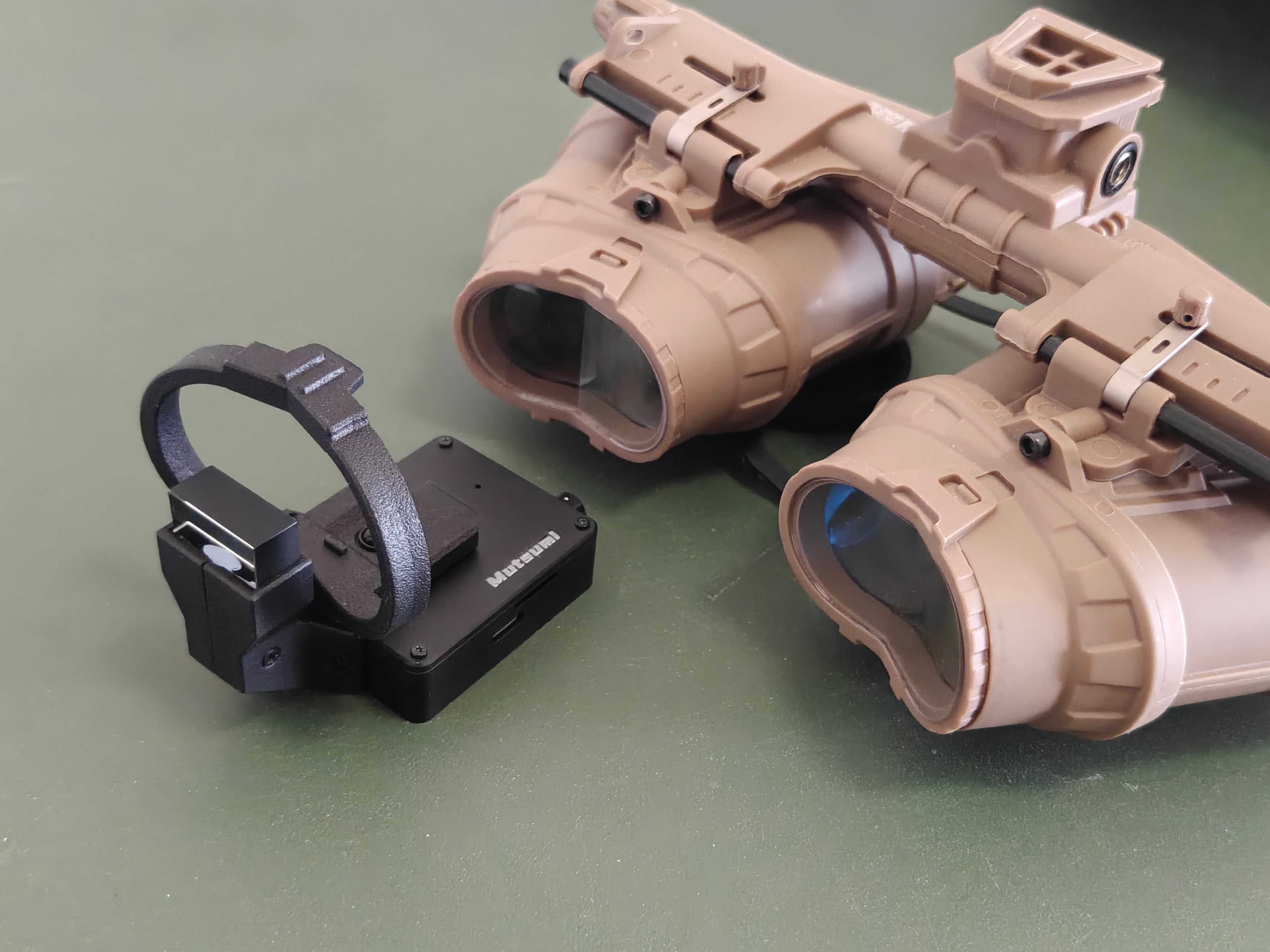

High Compatibility.

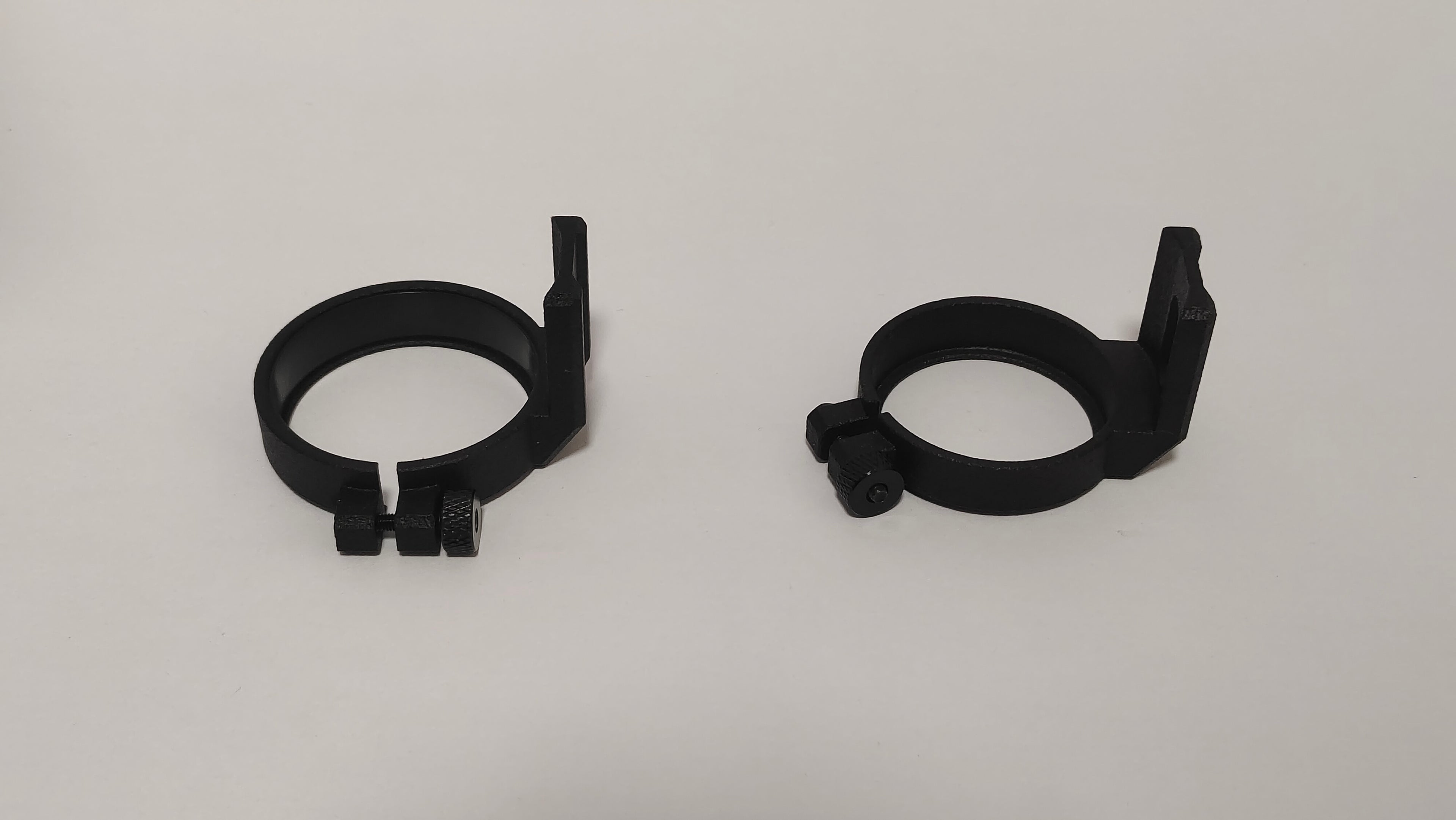

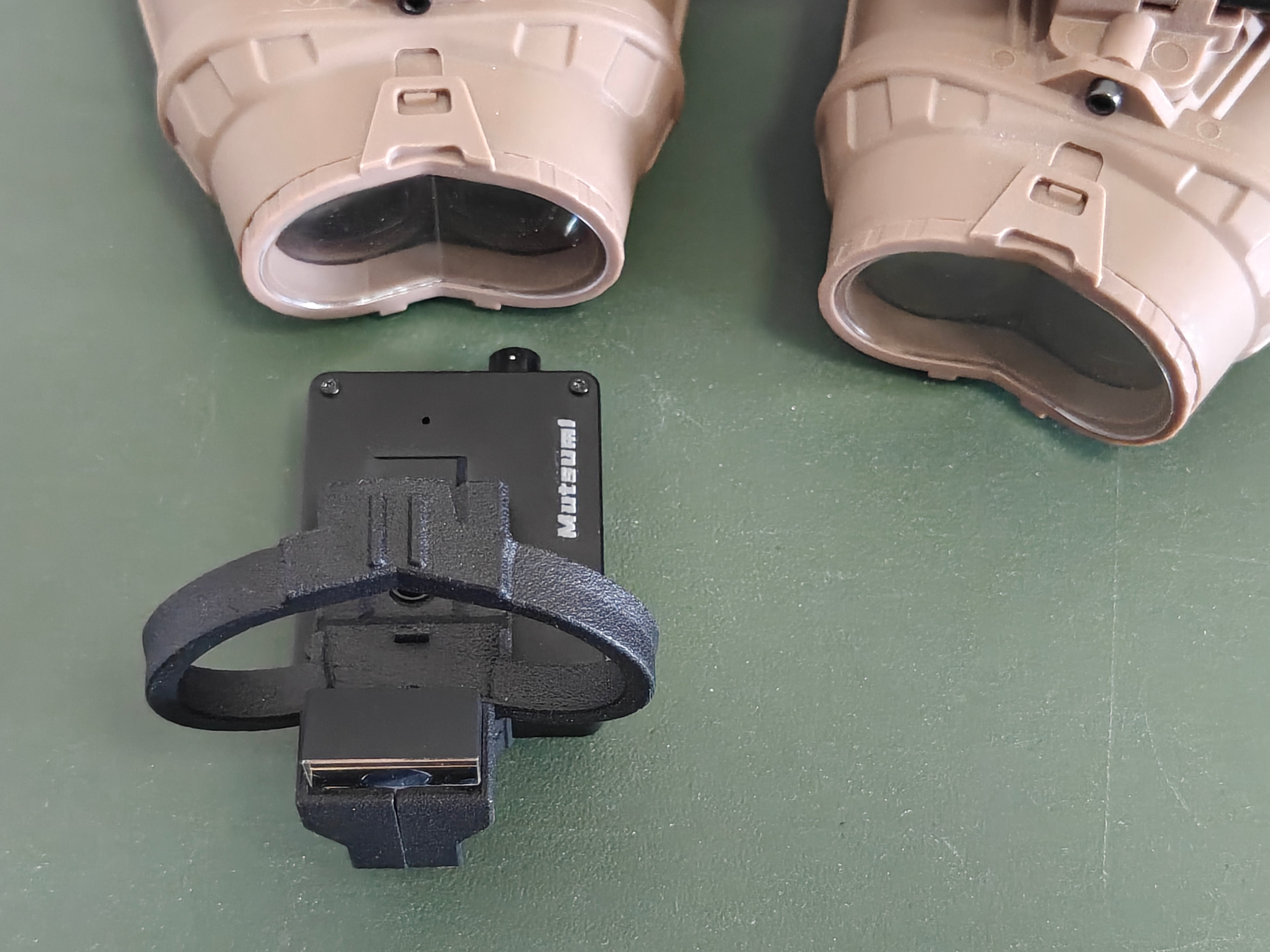

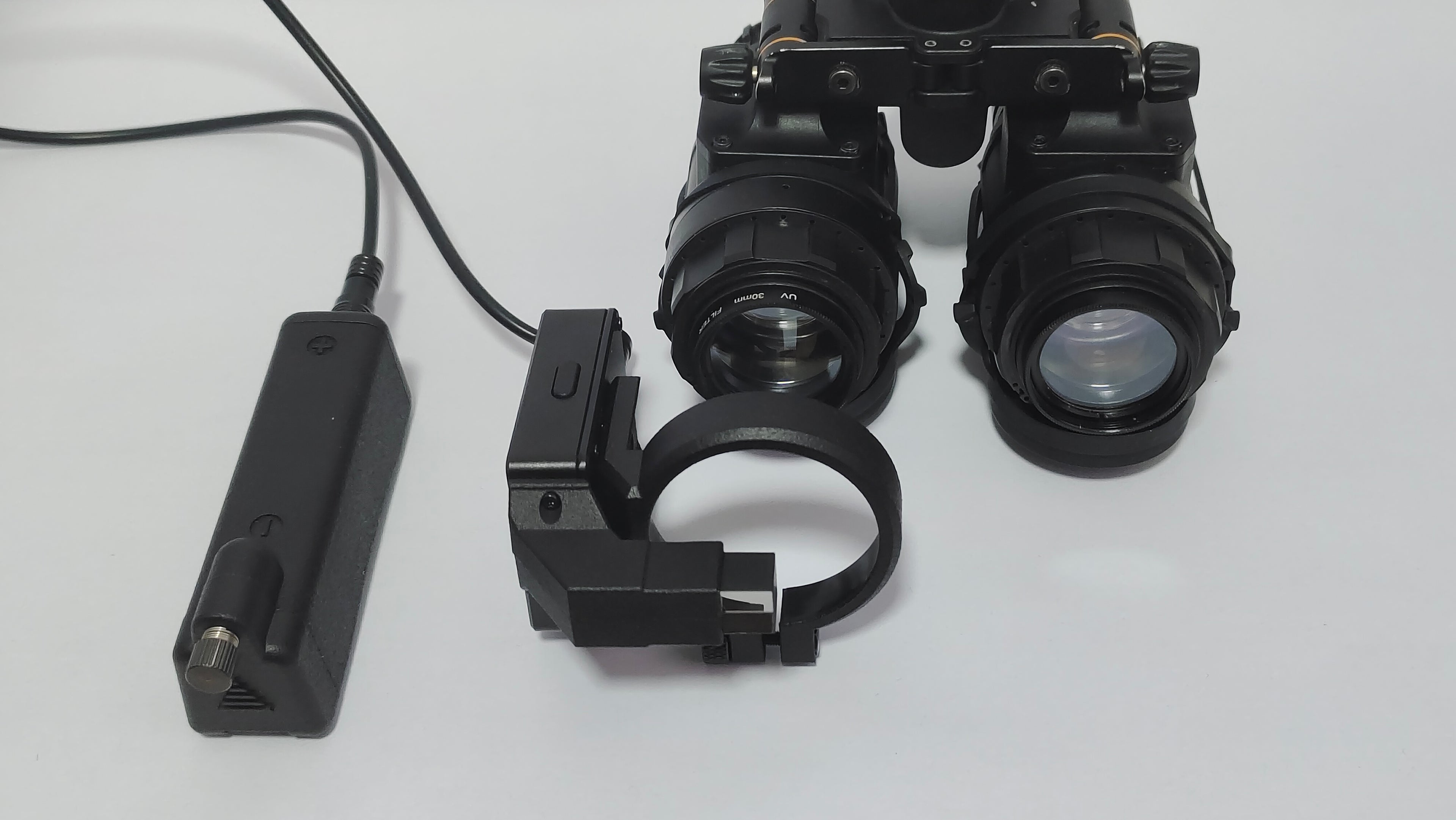

You can make it compatible with different NVGs simply by switching the adapter rings.
Supported NVGs:
PVS14, PVS31, 1431, AVS9, PVS7,Argus GPNVG18 etc
Powered by a single 18650 battery.You can also power the device using a power bank via Micro USB port.
Tested runtime: up to 160 minutes with a Panasonic 18650 (3400mAh) battery.

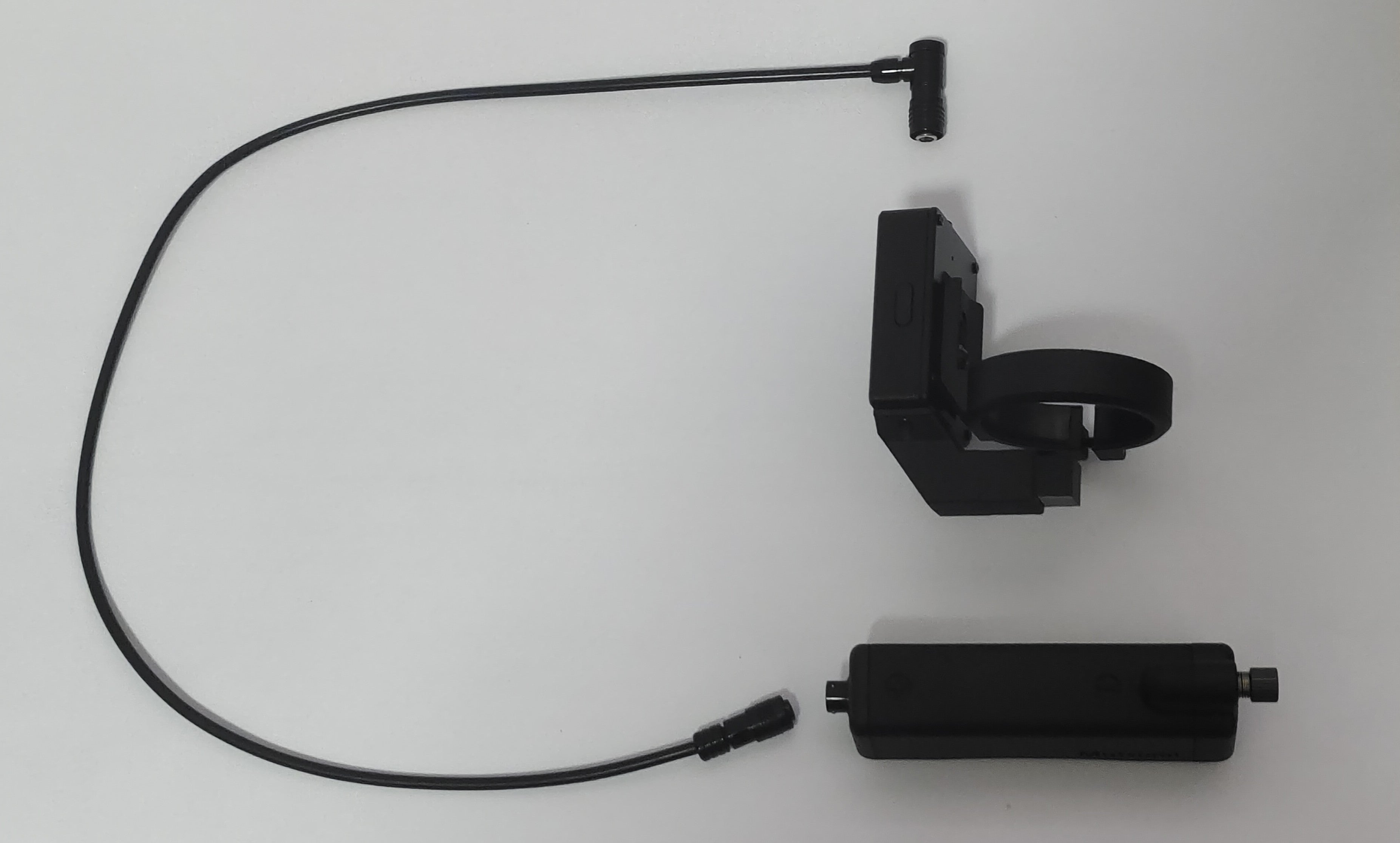

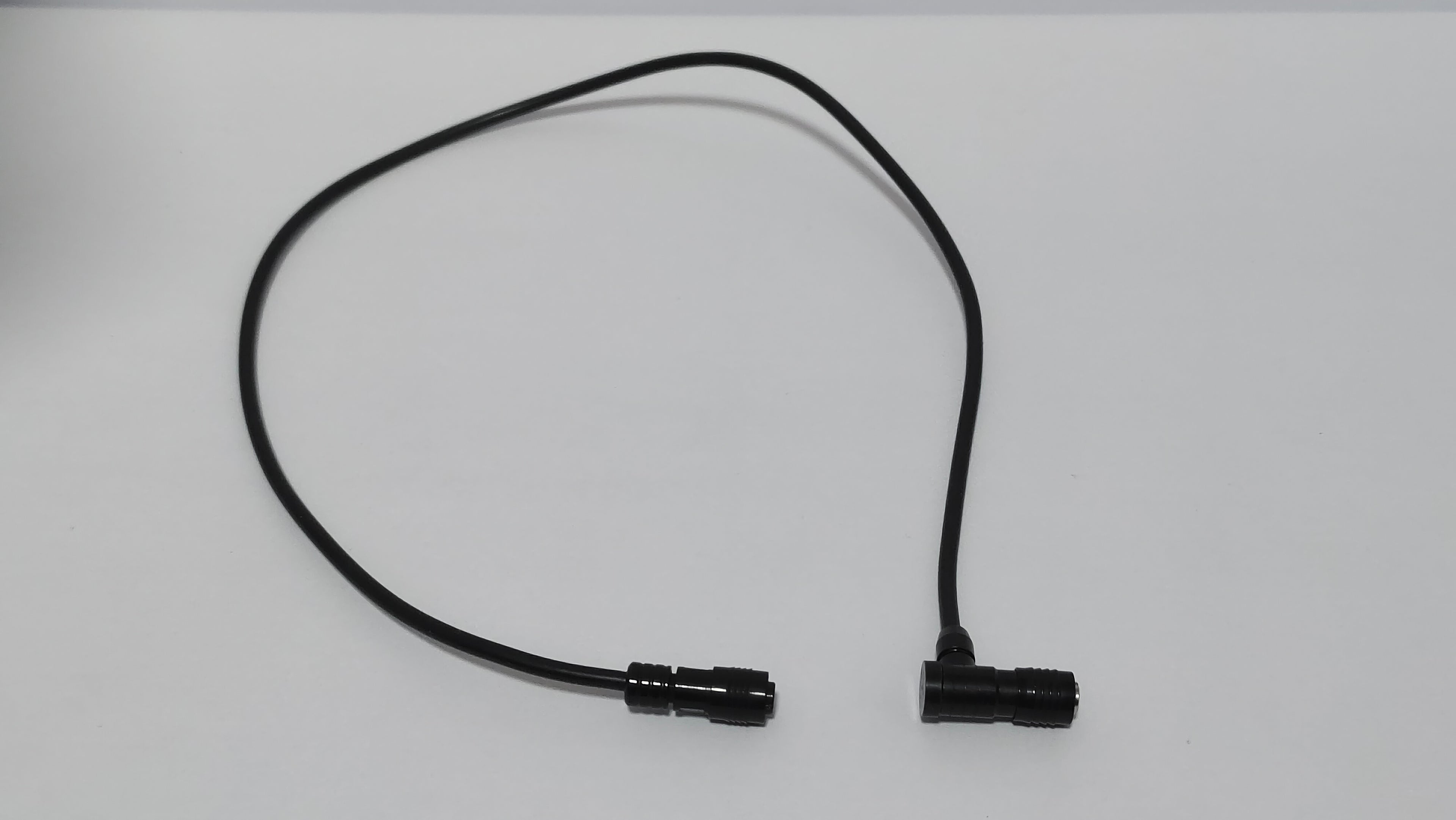

Aviation plug on the power cable.
Metal shell for highly impact resistance and cooling.
Unlike traditional 3D printing materials, the Mutsumi NVG Recorder uses the PA12 MJF process. Its performance exceeds that of traditional ABS plastic, and the material has a service life of over 10 years.

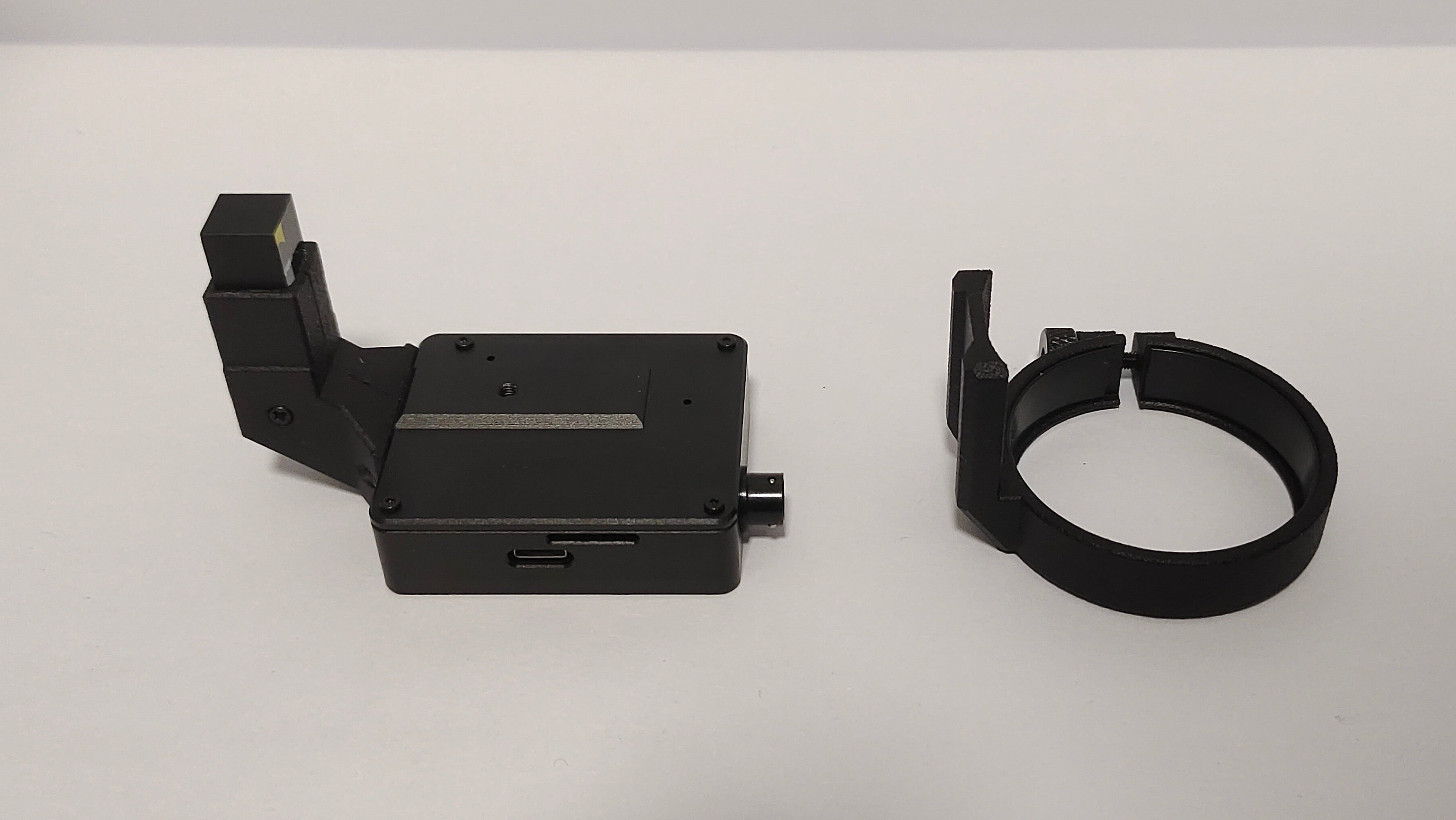

Micro SD card compatible up to 512GB.
The Micro USB port enables you to read the video files without removing the memory card.
The 18650 battery can be charged via the Micro USB port.

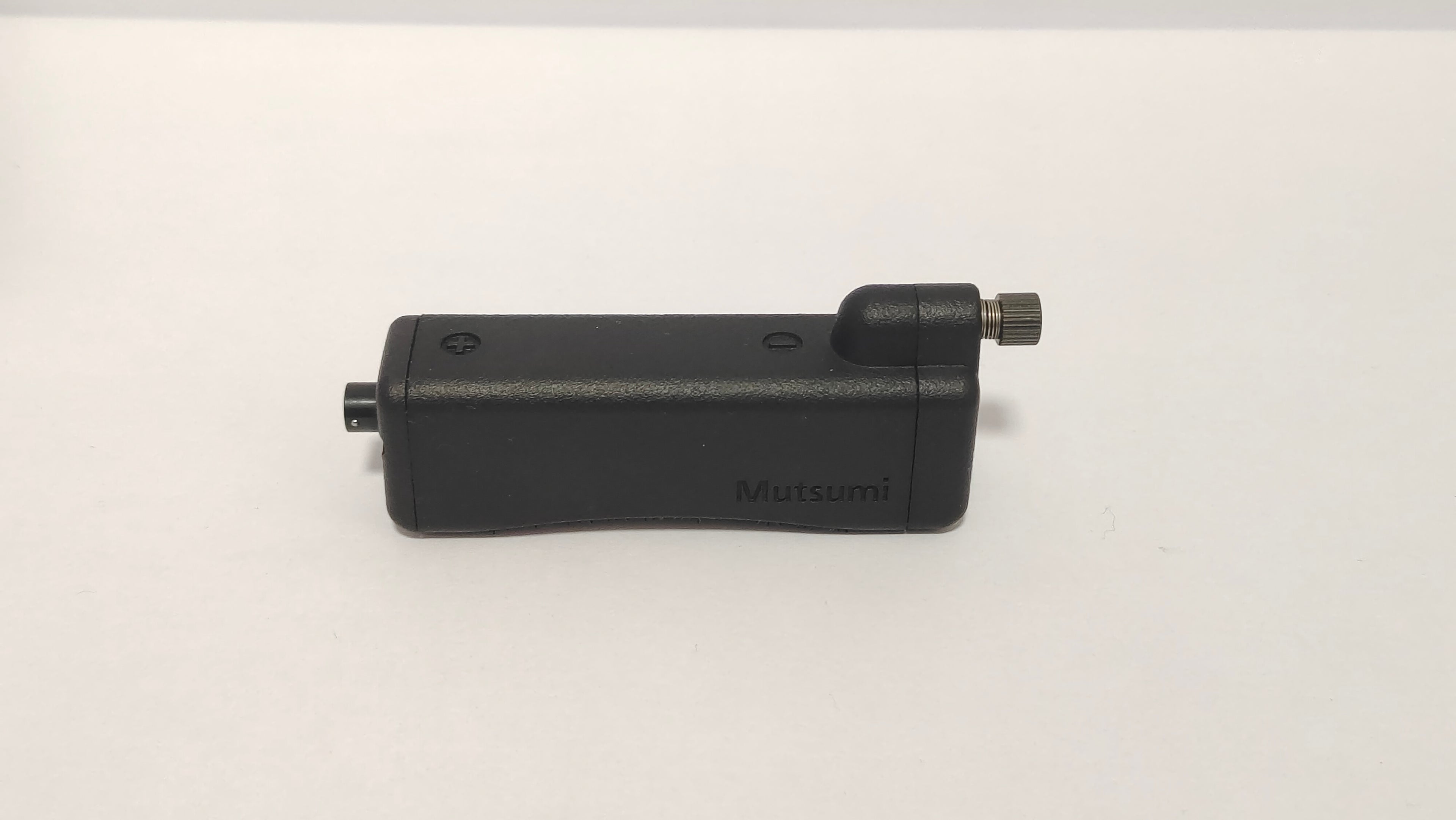

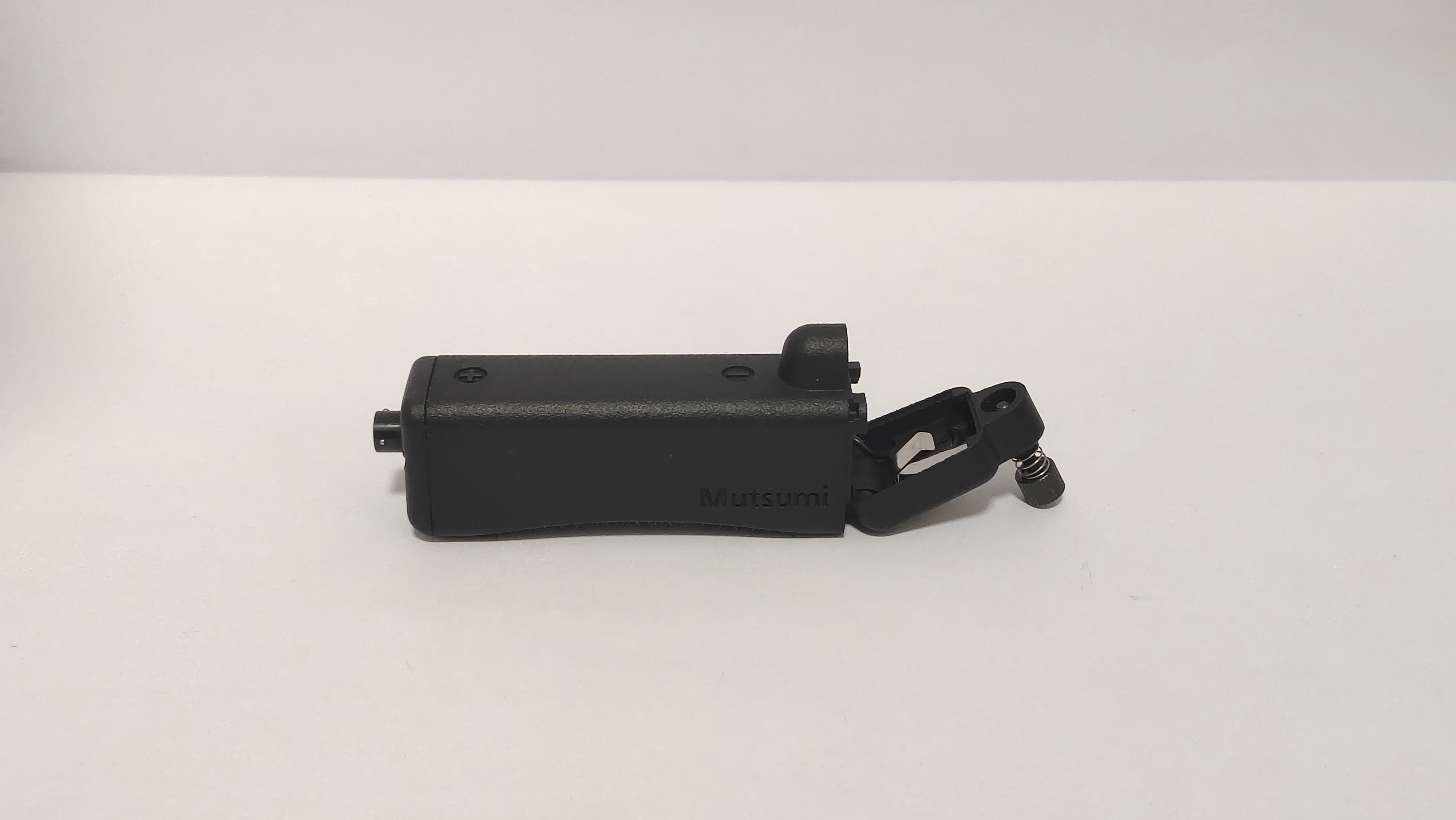

The battery case is small and equipped with reverse polarity protection.
Even if you accidentally insert the battery in reverse, it will not damage the recorder.

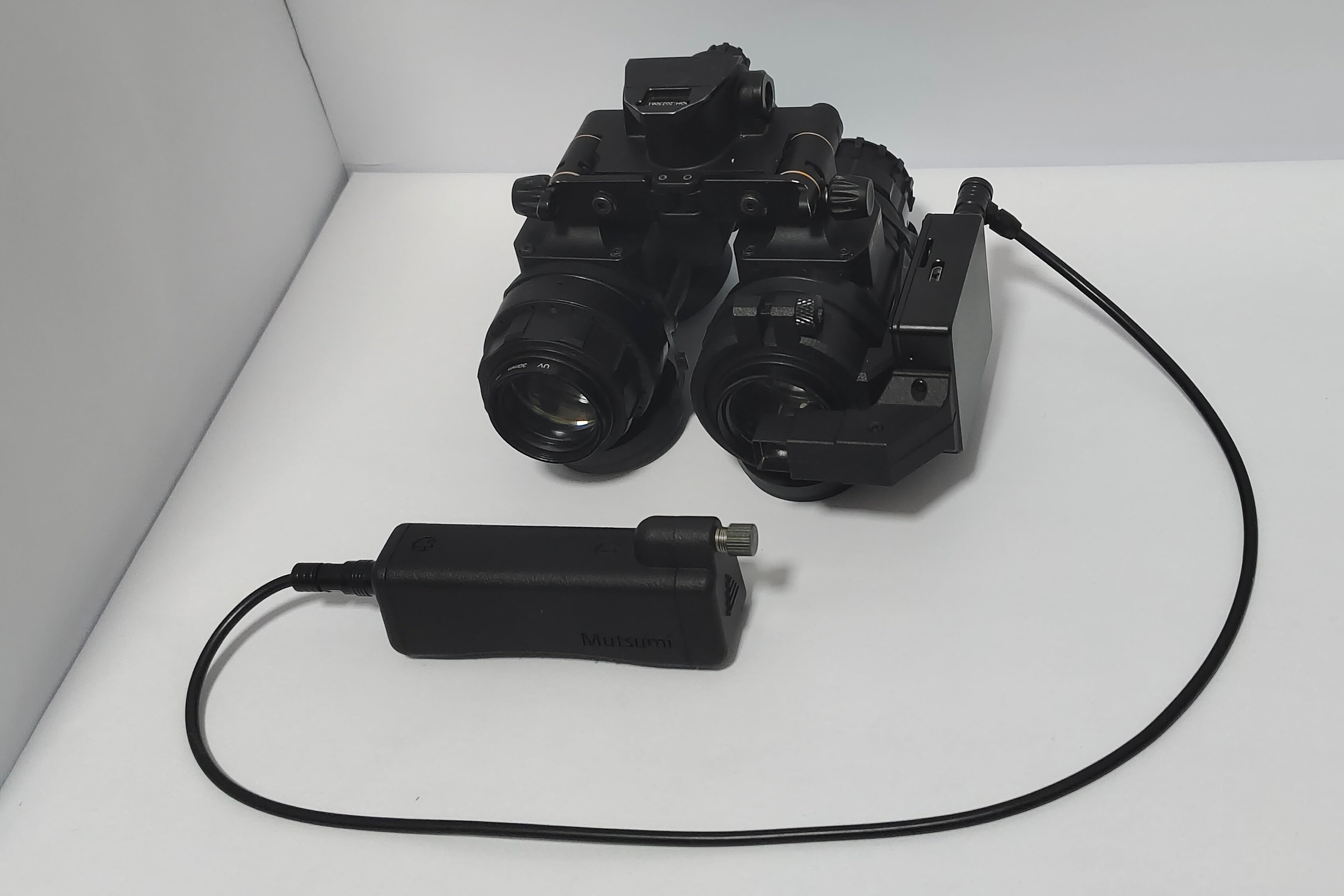

The battery case comes with Velcro tape, allowing it to be attached anywhere on the helmet to balance the front and rear weight.

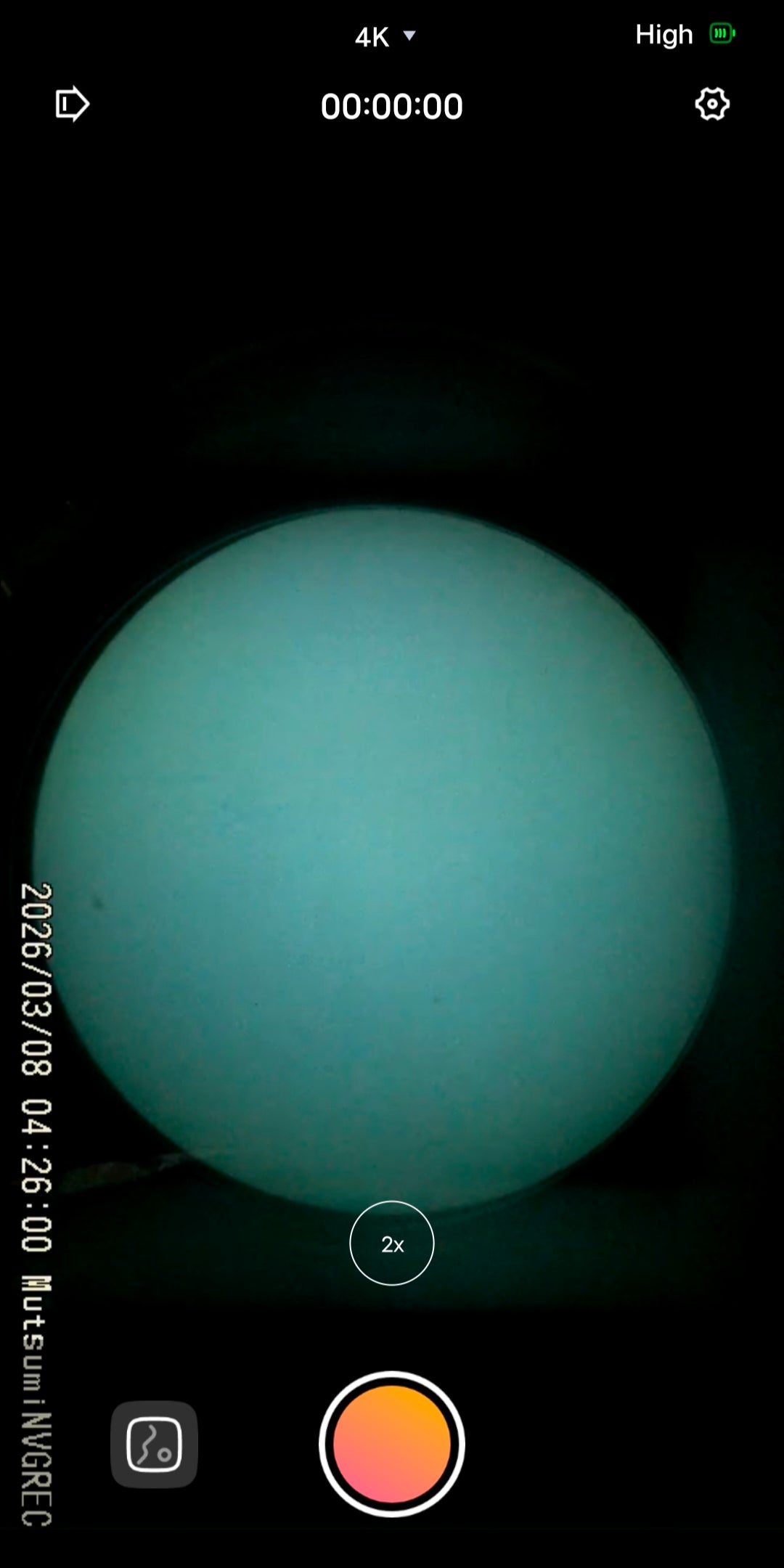

APP Preview
You can connect the NVG recorder to the mobile app via WiFi.
You can see exactly what the camera sees in real time through the mobile app.
If needed, we can also customize a WiFi removed version of the recorder.
Compatibility test

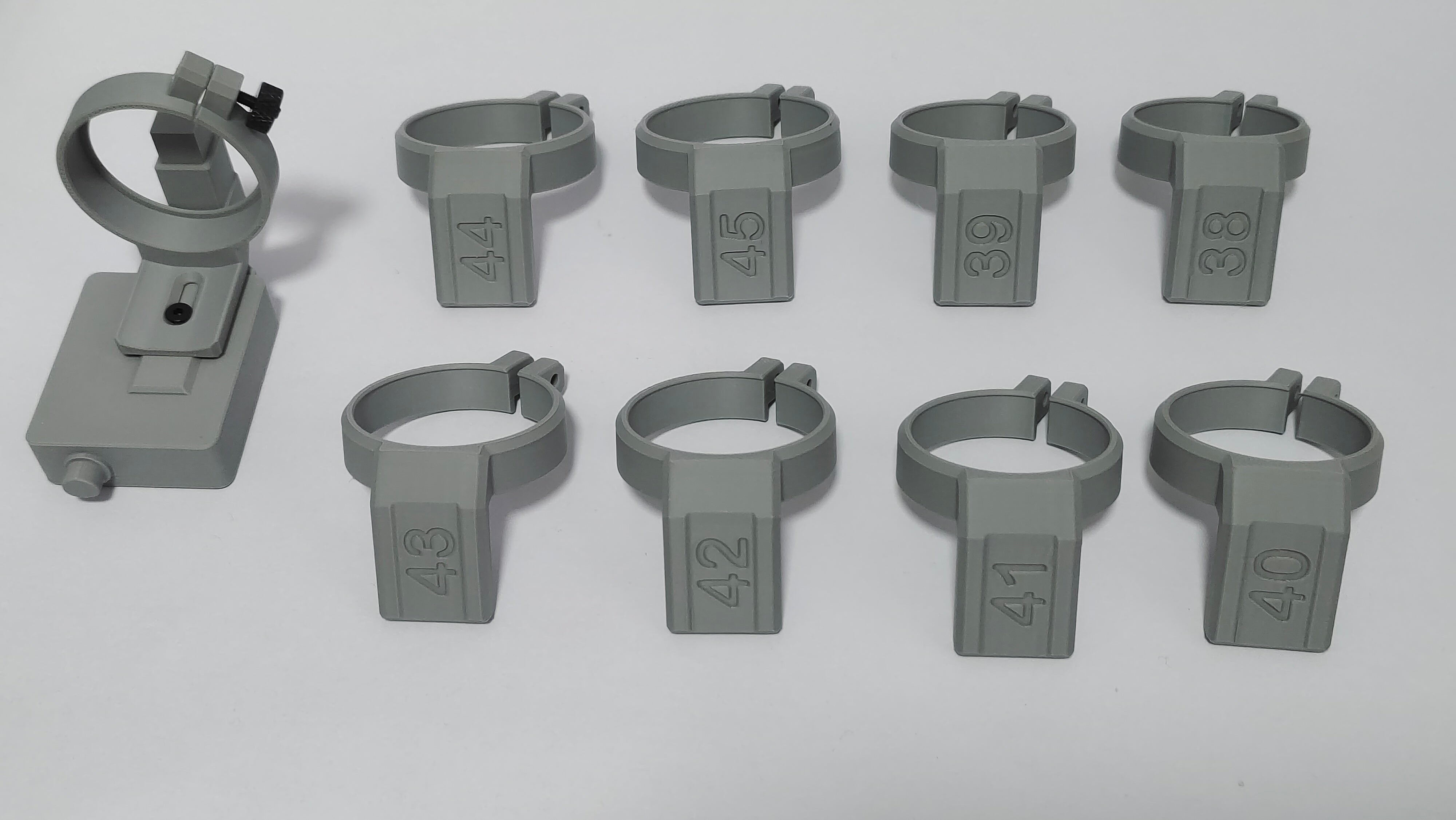

If you worry that the NVG recorder compatibility with your NVG, we can provide a test ring and a full scale model to help you ensure a proper fit.
You have two options: we can send you the 3D print files for you to print at home, or we can mail a finished scale model to you directly.
Contact us before order
Please contact us and provide us：
The model of your NVG

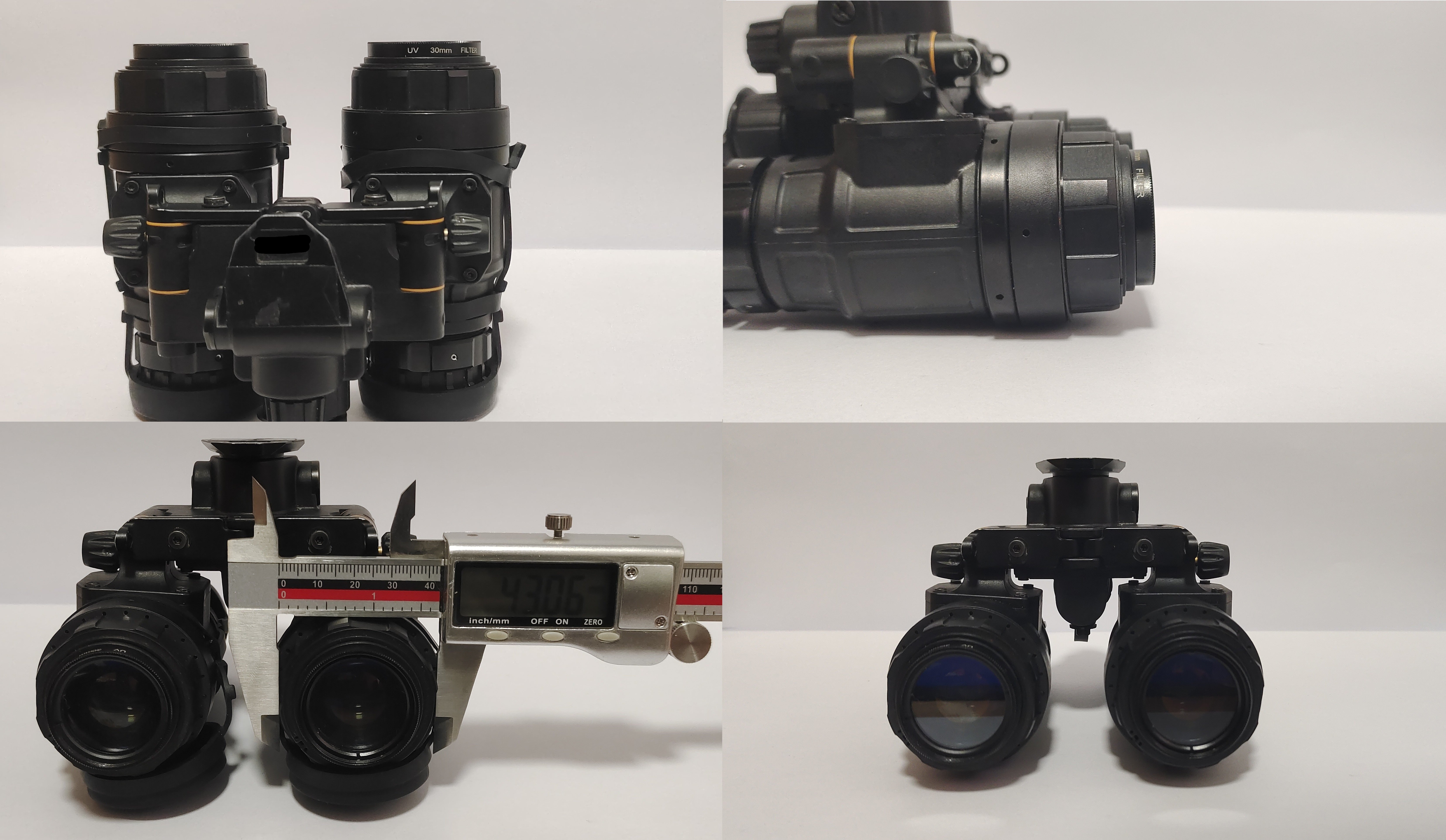

Take a video of your NVG. or, take three pictures from different angles, each centered on the eyepiece.（As shown in the image）
The diameter of your eyepiece（As shown in the image）
Contact us:
